美国SP SPN-VIN365手持式LED紫外灯

美国SPECTROLINE SPN-VIN365手持式LED紫外灯Vintage-365

人体工学，配合LED技术
宽光束等效HID紫外灯
无需风扇 冷却运行
型号：SPN-VIN365
标称稳定紫外线强度38cm处约：5500uw/cm2
白光泄漏38cm处小于：11Lux
UVA辐射面积＞1200uw/cm2直径约：20cm
光源：2颗UV-A LED
灯具类型：手持握把式
灯长：18*12.7*24.1cm
灯重：0.95Kg
电源： AC 220-240V
随货提供光谱输出证书

UV-A intensity reading taken with the Spectroline AccuMAX Serise meter,and are faceory set to the values shown。

SPN-VIN365手持式LED紫外灯替代以下型号紫外灯：FC-100、SB-100、FC-150、BIB-150

SPN-VIN365手持式LED紫外灯功能说明

以上紫外数据由美国SPECTROLINE公司的XRP-3000黑白两用照度计测试的数据。

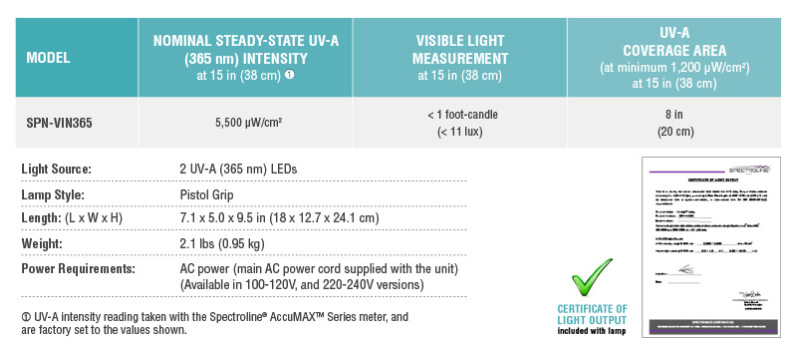

SPN-VIN365手持式LED紫外灯技术参数

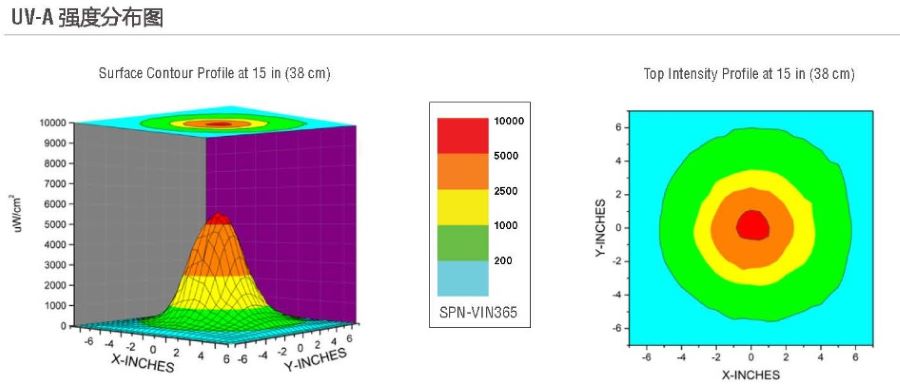

SPN-VIN365手持式LED紫外灯的光强度分布图

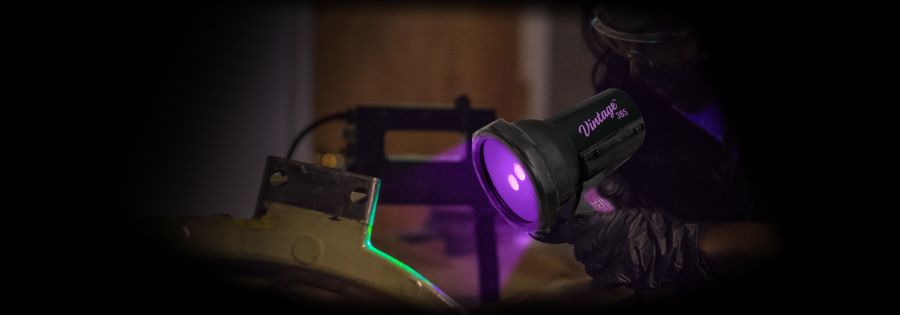

SPN-VIN365手持式LED紫外灯用于无损检测

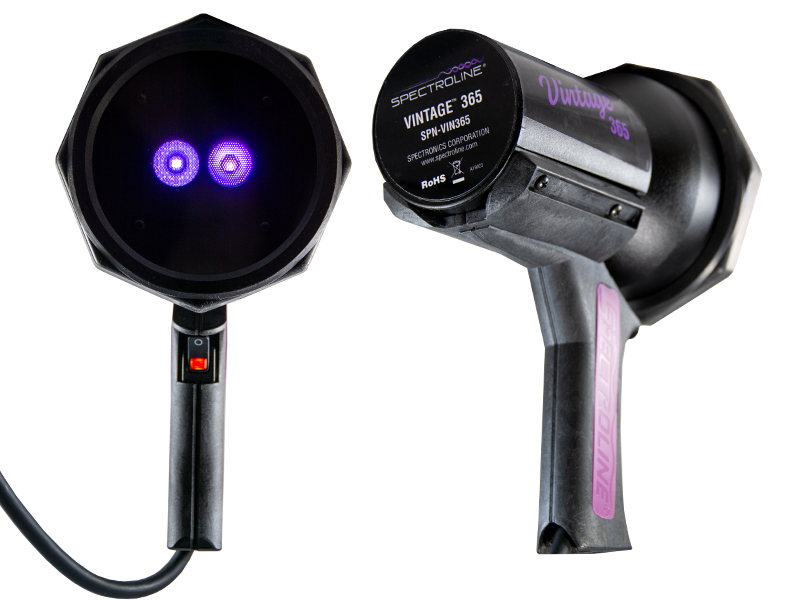

Spectro-UV Vintage 365（spn-vin365） Handheld LED UV Lamp

Classic Design. Modern Technology. Economic Price.

Classic Design, Modern Technology

The Vintage 365 is a handheld LED UV-A inspection lamp for NDT with a vintage, ergonomic design but modern LED technology. This quality lamp is at an economic price and features a wide beam profile that has a light output equivalent to classic HID lamps. With a fanless design, this cool running lamp is efficient and reliable.Note that the Vintage 365 is a non-spec UV lamp for industrial use only - not certified to ASTM-E-3022 or RRES 90061

spn-vin365 Handheld LED UV Lamp Features

Nominal steady state intensity of 5,500 µW/cm2 at 15 in

Less than 1 fc of visible light emission

Wide beam diameter of 6 in (15.2 cm) of at least 1,200 µW/cm2 at 15 in

Meets ISO 3059 specifications

Certificate of Light Output included

Lightweight – 2.1 lbs (0.95 kg)

Long-lasting UV-A lenses

Ergonomic handle, durable housing

Cool running, fanless design

Consistent beam profile

Reliable performance
