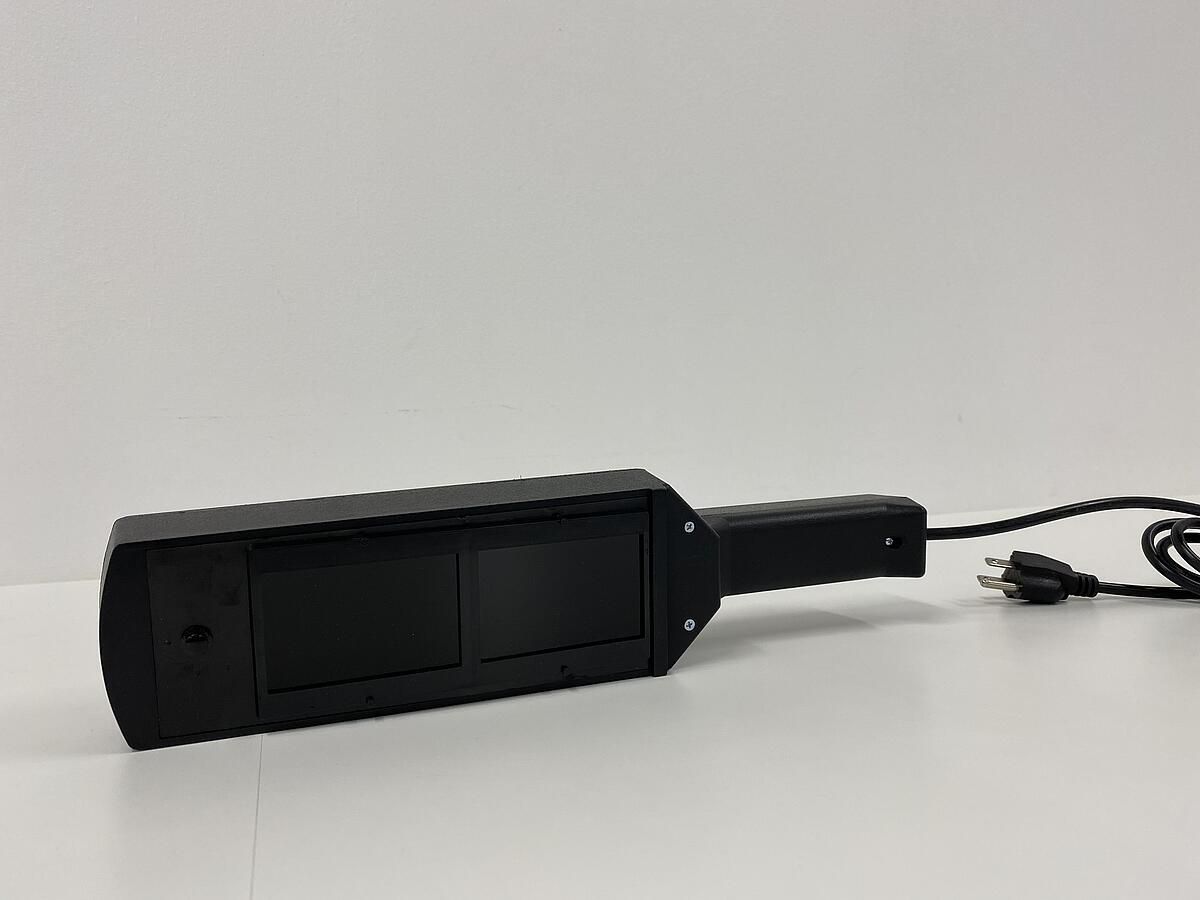

Analytik Jena UVGL-55手提式双波长紫外线灯为6瓦，长波365nm和短波254nm的双波长组合。
紫外强度：µW/cm² @ 3"...
LW 365nm: 950
SW 254nm: 1290
手提式紫外灯的设计，符合人体工程学设计的手柄，操作便携。手提紫外灯可提供长波、中波、短波或者长波和短波的双波长组合。
双波长紫外线灯UVGL-55主要特点
•功率为6W
•重量轻，有利于手提操作
•坚固耐用的塑料外壳
•可选择短波紫外线，长波紫外线或短波和长波的双波长紫外组合。
•长波和短波的双波长模式具有开关可实现波长之间的轻松转换。
•符合人体工程学设计的手柄。轻量级的手提灯，方便满足各种测试需求操作。
UVGL-55双波长紫外线灯技术规格
| 功率 | 6W |
| 波长 | 双波长；长波365nm短波254nm |
| 外壳材质 | 塑料外壳 |
| 灯尺寸 | 378×81×64mm |
| J-129支架 | 247x330mm |
| J-130支架 | 330X270X80m |
型号选择
| 型号 | 货号 | 功率/波长 | 可替换灯管 |
| UVG-54 | 95-0004-10 | 6W，254nm，手提短波紫外线灯 | 34-0013-01 |
| UVGL-55 | 95-0005-06 | 6W，2UV，365nm/254nm，双波长紫外灯*Multi-band split tube lamp | 34-0034-01 365nm34-0013-01 302nm |
| UVGL-58 | 95-0007-06 | 6W，2UV,254nm/365nm，手提双波长紫外灯 | 34-0034-01 365nm 34-0013-01 254nm |
| UVL-56 | 95-0006-03 | 6W, 365nm，手提长波紫外灯 | 34-0034-01 |
| UVM-57 | 95-0104-02 | 6W，302nm，手提中波紫外线灯 | 34-0044-01 |
选购配件
| 迷你紫外观察箱 | 95-0072-01 | C-10 |
| 紫外防护眼镜 | 98-0002-06 | UVC-305 |
| 紫外防护面罩 | 98-0002-04 | UVC-803 |
| 紫外灯管 | 34-0013-01 | 6W，254nm |
| 紫外灯管 | 34-0034-01 | 6W，365nm |
| 紫外灯管 | 34-0044-01 | 6W，302nm |
| J-129 | 98-0016-03 | Lamp Stand，灯架 |
| J-130 | 98-0017-03 | 灯支架 |
UVP Handheld UV Lamps
Lamps are lightweight for easy handling
Durable plastic housing
Six watt tubes
Models available with shortwave (254 nm), midrange (302 nm), longwave (365 nm) UV or a combination shortwave/longwave (254/365 nm) version
Combination shortwave/longwave version comes with a snap-on wavelength selector for switching between wavelengths
Product Details
Lamps are lightweight for easy handling
Handheld UV Lamps (6 watts) are uniquely designed with an ergonomically designed handle. Select from longwave, midrange, shortwave or combination longwave and shortwave in the same lamp.
Applications include:
Photochemistry/Phosphorescence
Inspection
Laboratory
General Chemical Laboratory
*Product performance and effectiveness will depend on the user.*
Technical Data
| Housing | Plastic |
| UV | Select from models with 254 nm, 302 nm, 365 nm UV or combination 254/365 nm |
| Watts | Six |
| Lamp Dimensions | 14.9L x 3.2W x 2.5H in. (378 x 81 x 64 mm) |
| Lamp Stand Dimensions | 10.74H x 13L x 3W in. (273 x 330 x 76 mm) |
Order Information
| 115 V | 230 V | Model | Description 6 Watt Lamps | Filter |
| 95-0004-09 | 95-0004-10 | UVG-54 | Handheld UV Lamp, 254 nm | 98-0004-03 |
| 95-0005-05 | 95-0005-06 | UVGL-55 | Handheld UV Lamp, 254/365 nm | 98-0005-03 |
| 95-0007-05 | 95-0007-06 | UVGL-58 | Handheld UV Lamp, 254/365 nm | 98-0004-03 |
| 95-0006-02 | 95-0006-03 | UVL-56 | Handheld UV Lamp, 365 nm | 98-0006-03 |
| 95-0104-01 | 95-0104-02 | UVM-57 | Handheld UV Lamp, 302 nm | 98-0004-03 |
Replacement Parts / Accessories
| 98-0016-03 | J-129 | Lamp Stand |
| 34-0013-01 | Replacement Tube | 6 Watt, 254 nm |
| 34-0015-01 | Replacement Tube | 6 Watt, 254/365 nm (split tube) |
| 34-0034-01 | Replacement Tube | 6 Watt, 365 nm |
| 34-0044-01 | Replacement Tube | 6 Watt, 302 nm |
关于Analytik Jena US公司：
耶拿美国分析公司，前身为UVP，为多种应用设计和制造紫外线产品解决方案。2013年，UVP被位于德国耶拿的耶拿分析股份公司（现为耶拿分析有限公司）收购。UVP公司更名为耶拿美国有限责任公司，并作为耶拿分析师生命科学业务部门的一部分运营。
紫外线产品包括紫外线灯、紫外线透射仪、紫外线柜、紫外线交联剂和紫外线强度计。耶拿美国Analytik，前身为UVP，为犯罪学、电泳、薄层色谱、灭菌、卫生、毒理学、检测、无损检测和紫外线固化等应用设计和制造紫外线产品解决方案。
实验室产品是耶拿美国分析公司在科学市场设备设计、开发和制造方面的领先地位的直接产物。在电泳、印迹、杂交和蛋白质组学领域，正在创造和生产密切相关的技术和应用。光源根据特定要求设计定制紫外线光源。该集团生产用于分析和工业应用的低压，汞，锌和稀有气体，紫外线笔灯。
耶拿美国公司的制造工厂位于加利福尼亚州的厄普兰。耶拿美国公司拥有100多名员工的销售、营销、研发和制造人员，为全球客户和经销商提供全面的服务和支持。
Analytik Jena US, formerly UVP, designs and manufactures ultraviolet product solutions for multiple applications. In 2013, UVP was acquired by Analytik Jena AG (now Analytik Jena GmbH) which is based in Jena, Germany. The UVP Company name was changed to Analytik Jena US LLC, and operates as part of Analytik Jena's Life Science Business Unit.
Ultraviolet Products includes UV lamps, UV transilluminators, UV cabinets, UV crosslinkers and UV intensity meters. Analytik Jena US, formerly UVP, designs and manufactures ultraviolet product solutions for applications including criminology, electrophoresis, thin-layer chromatography, sterilization, sanitation, toxicology, inspection, non-destructive testing and UV curing.
Laboratory Products
Laboratory Products is a direct outgrowth of Analytik Jena US's leading position in the design, development and manufacture of equipment for the scientific marketplace. Closely related technology and applications are being created and produced in the areas of electrophoresis, blotting, hybridization and proteomics.
Light Source Designs
The Light Source designs custom ultraviolet light sources to specific requirements. The group manufactures low-pressure, mercury, zinc and rare gas, ultraviolet Pen-Ray Lamps for analytical and industrial applications.
Analytik Jena US's manufacturing facility is located in Upland, California. With sales, marketing, R&D and manufacturing personnel of over 100 employees, Analytik Jena US provides comprehensive service and support to customers and dealers worldwide.
