美国UVP(Analytik Jena) UVLMS-38手持式紫外线灯三波长于一体，可轻松切换三种波长（长波，中波和短波）为满足你的各种测试需要。 三种波长：长波365nm、短波254nm和中波302nm。金属外壳，坚固耐用，耐挤压等特点，有单个波长和多种波长组合可选择。
紫外强度：
LW 365nm: 950µW/cm²
SW 254nm: 1200 µW/cm²
MR 302nm: 900 µW/cm²
Analytik Jena EL系列手持式紫外线灯主要特点
从各种波长的选择：
• 具有4W，6W或8W的选择。
• 可选择的型号包括254nm的短波，365nm的长波或短波和长波的双波长紫外组合。
• 可提供一个紫外光和一个白光的组合配置，被照射的材料在光线昏暗的区域时，可使用白光照明观察。
• 双灯管模式可以选择一样的波长或两种不同的波长。
• 只有8W的紫外灯可选择三种波长，UVLMS-38三波长于一体，可轻松切换三种波长（长波，中波和短波）为满足你的各种测试需要。
• 坚固耐用的设计促使了高使用率。EL手持灯是重量轻，易于手持或结合支架免提操作。内置反射板，增强紫外强度。
美国UVLMS-38手持式紫外线灯技术规格
| 技术规格 | |
| 紫外光源 | 3UV：长波365nm和中波302nm和短波254nm |
| 功率 | 8W |
| 外壳 | 金属外壳，具有防刮耐磨粉末涂层 |
| 线长 | 2.5米 |
| 紫外灯尺寸 | 376×96×64mm |
| J-140灯架尺寸 | 280X330X80mm |
型号选择
| Part Numbers型号 | |||
| 型号 | 货号 | 功率/波长 | 可替换灯管 |
| UVL-28 | 95-0248-02 | 8W，365nm，手持式长波紫外线灯 | 34-0006-01 |
| UVLM-28 | 95-0251-02 | 8W，2UV，302nm/365nm，双波长紫外灯 | 34-0006-01 365nm |
| UVLMS-38 | 95-0252-02 | 8W，3UV,254nm/302nm/365nm，三波长紫外灯 | 34-0006-01 365nm 34-0042-01 302nm |
| UVLS-28 | 95-0201-02 | 8W, 365nm/254nm，双波长紫外灯 | 34-0006-01 365nm 34-0007-01 254nm |
| UVM-18 | 95-0199-02 | 8W，302nm/白光，中波紫外线灯 | 34-0042-01 |
| UVM-28 | 95-0250-02 | 8W，302nm，中波紫外线灯 | 34-0042-01 |
| UVS-18 | 95-0200-02 | 8W，254nm/白光，短波紫外线灯 | 34-0007-01 |
| UVS-28 | 95-0249-02 | 8W，254nm，短波紫外线灯 | 34-0007-01 |
| UVL-18 | 95-0198-02 | 8W，365nm/白光，长波紫外线灯 | 34-0006-01 |
| J-138 | 18-0063-01 | Lamp Stand灯架 | |
| J-140 | 18-0062-01 | Lamp Stand灯架 | |
选购附件
| 名称 | 型号 | 描述 |
| 紫外观察箱 | 95-0257-02 | C-65 |
| 紫外防护眼镜 | 98-0002-06 | UVC-305防护眼镜保护眼睛 |
| 紫外防护面罩 | 98-0002-04 | UVC-803防护面罩保护面部 |
| 紫外灯管 | 34-0006-01 | 8W，365nm |
| 紫外灯管 | 34-0042-01 | 8W，302nm |
| 紫外灯管 | 34-0007-01 | 8W，254nm |
| 白光灯管 | 34-0056-01 | 8W，白光 |
| J-140支架 | 18-0063-02 | 免手提操作 |
UVLMS-38手持式紫外线灯产品操作说明书下载地址：
3UV Series Handheld Lamps Operating Instructions.pdf
UVP 3UV Lamps UVLMS-38
Three wavelengths, 254/302/365 nm UV, in one lamp
Selection of each wavelength made easy by a turn of the dial located on one end of the housing
Reflector surfaces mounted behind each tube provides maximum UV for fluorescence applications
Lightweight and ergonomically designed for hand or stationary use
Design allows for stationary use by standing the lamp on its end or side
Product Details
Three wavelengths in one lamp
Innovative, versatile and patented 3UV lamp houses multiple wavelengths: longwave, shortwave and midrange UV in one lamp for multiple applications. Reflectors behind each tube provide maximum UV light for fluorescent applications. Lamp is available in four, six or eight watts.
Applications include:
Photochemistry/Phosphorescenc
Inspection
Laboratory
General Chemical Laboratory
Education
*Product performance and effectiveness will depend on the user.*
Technical DataSpecifications
Watts: | Four, six or eight watt models |
UV Source: | 254 nm, 302 nm, 365 nm |
Dimensions: | 3UV-34: 9.5L x 3W x 4.5D in. (241 x 76 x 114 mm) 3UV-36: 12.5L x 3W x 4.5D in. (318 x 76 x 114 mm) 3UV-38: 15.5L x 3W x 4.5D in. (394 x 76 x 114 mm) |
Order Information
| Part Numbers | |||||
|---|---|---|---|---|---|
| 115 V / 60 Hz | 230 V / 50 Hz | Model | Watts | Wavelength | Replacement Filter |
| 95-0341-01 | 95-0341-02 | UVP-3UV | 4 watts | 254/302/365 nm | 38-0286-03 |
| 95-0342-01 | 95-0342-02 | UVP-3UV | 6 watts | 254/302/365 nm | 38-0286-02 |
| 95-0343-01 | 95-0343-02 | UVP-3UV | 8 watts | 254/302/365 nm | 38-0286-01 |
| Replacement Tubes | |||||
| 34-0006-01 | 8 watt | Replacement Tube, 365 nm | |||
| 34-0042-01 | 8 watt | Replacement Tube, 302 nm | |||
| 34-0007-01 | 8 watt | Replacement Tube, 254 nm | |||
| 34-0034-01 | 6 watt | Replacement Tube, 365 nm | |||
| 34-0044-01 | 6 watt | Replacement Tube, 302 nm | |||
| 34-0013-01 | 6 watt | Replacement Tube, 254 nm | |||
| 34-0005-01 | 4 watt | Replacement Tube, 365 nm | |||
| 34-0071-01 | 4 watt | Replacement Tube, 302 nm | |||
| 34-0003-01 | 4 watt | Replacement Tube, 254 nm | |||

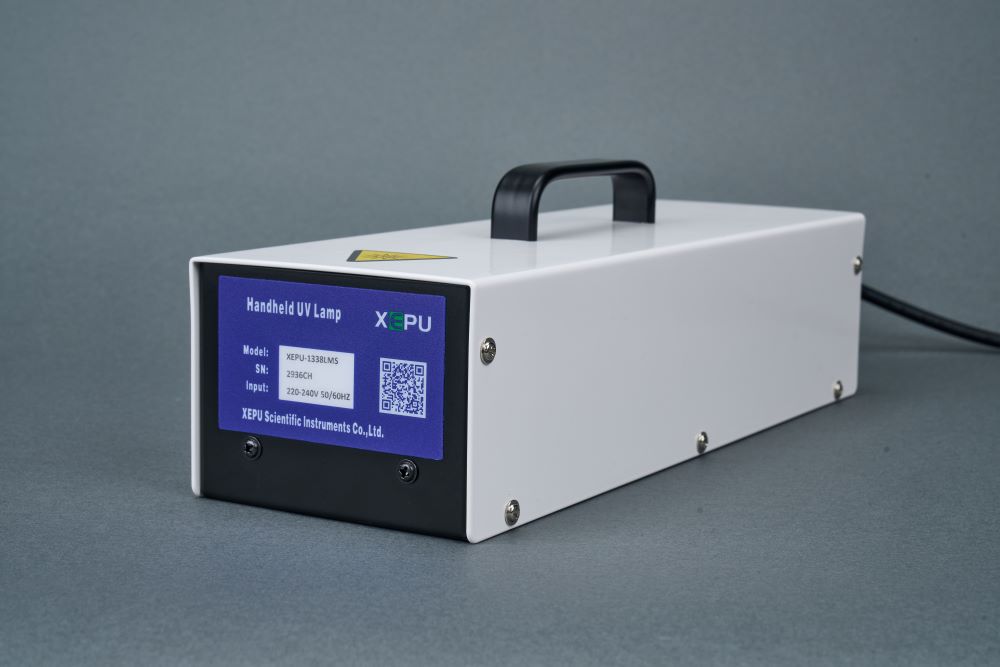

推荐一款经济型的三波长紫外灯：
