UVP 3UV Lamps 3UV-38

UVP 3UV-38三波长紫外灯内置有三种紫外线波长,254nm/302nm/365nm,在一台紫外线灯中通过转动位于外壳一端的刻度盘,可以轻松选择每个波长。安装在每个管后面的反射器表面为荧光应用提供大的紫外线。重量轻,符合人体工程学设计,适合手动或固定使用,设计允许通过将紫外线灯放在其末端或侧面来固定使用。

在线咨询 价格咨询
13818683556
UVP 3UV Lamps 3UV-38产品详情

UVP 3UV Lamps

Three wavelengths, 254/302/365 nm UV, in one lamp

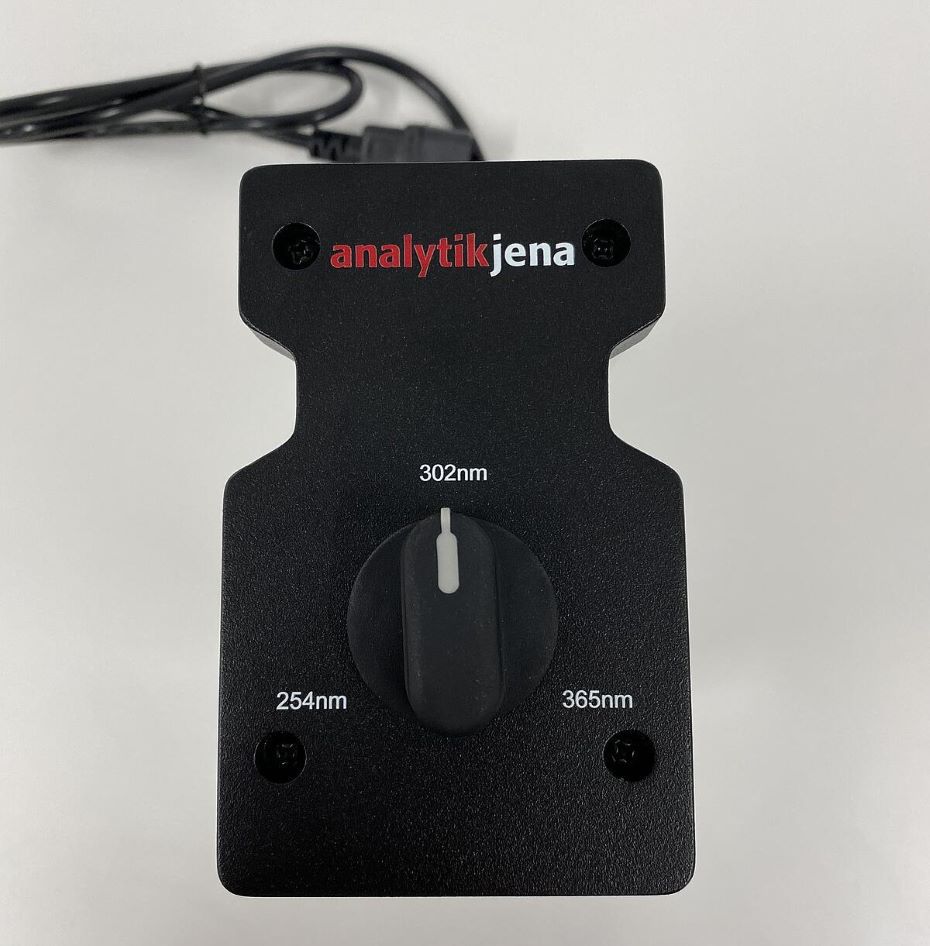

Selection of each wavelength made easy by a turn of the dial located on one end of the housing

Reflector surfaces mounted behind each tube provides maximum UV for fluorescence applications

Lightweight and ergonomically designed for hand or stationary use

Design allows for stationary use by standing the lamp on its end or side

UVP 3UV Lamps

Product Details

Three wavelengths in one lamp

Innovative, versatile and patented 3UV lamp houses multiple wavelengths: longwave, shortwave and midrange UV in one lamp for multiple applications. Reflectors behind each tube provide maximum UV light for fluorescent applications. Lamp is available in four, six or eight watts.

UVP 3UV Lampsg

Applications include:

Photochemistry/Phosphorescence

Inspection

Laboratory

General Chemical Laboratory

Education

*Product performance and effectiveness will depend on the user.*

UVP 3UV Lamps

Technical DataSpecifications


Watts:

Four, six or eight watt models

UV Source:

254 nm, 302 nm, 365 nm

Dimensions:


3UV-34: 9.5L x 3W x 4.5D in. (241 x 76 x 114 mm)

3UV-36: 12.5L x 3W x 4.5D in. (318 x 76 x 114 mm)

3UV-38: 15.5L x 3W x 4.5D in. (394 x 76 x 114 mm)

Order Information

115 V / 60 Hz230 V / 50 HzModelWattsWavelengthReplacement Filter
95-0341-0195-0341-02UVP-3UV4 watts254/302/365 nm38-0286-03
95-0342-0195-0342-02UVP-3UV6 watts254/302/365 nm38-0286-02
95-0343-0195-0343-02UVP-3UV8 watts254/302/365 nm38-0286-01

Replacement Tubes

34-0006-018 wattReplacement Tube, 365 nm
34-0042-018 wattReplacement Tube, 302 nm
34-0007-018 wattReplacement Tube, 254 nm
34-0034-016 wattReplacement Tube, 365 nm
34-0044-016 wattReplacement Tube, 302 nm
34-0013-016 wattReplacement Tube, 254 nm
34-0005-014 wattReplacement Tube, 365 nm
34-0071-014 wattReplacement Tube, 302 nm
34-0003-014 wattReplacement Tube, 254 nm
