美国 MONARCH INSTRUMENT ROLS远程光学转速传感器

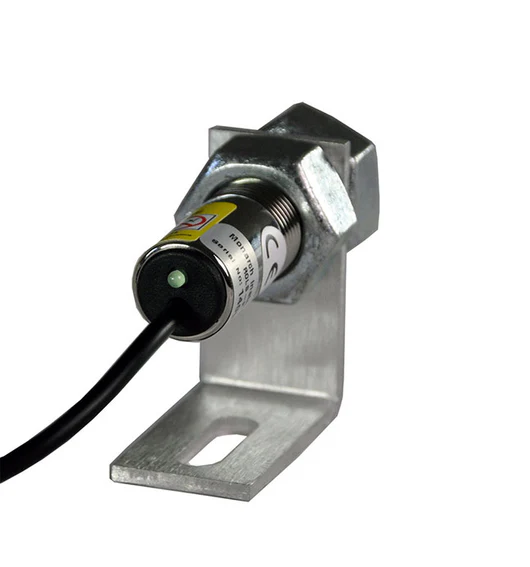

1-250,000 RPM。用途极其广泛，能够长距离工作（远 25 英尺）。ROLS-W（镀锡线端接）和 ROLS-P（1/8 英寸电话插头端接）是螺纹不锈钢远程光学传感器，配有可见的红色激光光源。这些传感器都配有目标绿色 LED 指示灯。
型号 ROLS-P：远程光学激光传感器，配有 8 英尺电缆、1/8 英寸 [3.5 毫米] 电话插头连接器、带防松螺母的安装支架和 12 英寸 T-5反光 带
型号 ROLS-P-25： 远程光学激光传感器，配有 25 英尺电缆、1/8 英寸 [3.5 毫米] 电话插头连接器、带防松螺母的安装支架和 12 英寸 T-5 反光带
型号 ROLS-W：远程光学激光传感器，配有 8 英尺电缆、3 根镀锡导线、带防松螺母的安装支架和 12 英寸 T-5 反光带
型号 ROLS24-W：远程光学激光传感器，配备 24 V 直流输入电源、8 英尺电缆、3 根镀锡导线、带防松螺母的安装支架和 12 英寸 T-5 反光带
型号 ROLS24-W-25： 远程光学激光传感器，配备 24 V 直流输入电源、25 英尺电缆、3 根镀锡导线、带防松螺母的安装支架和 12 英寸 T-5 反光带
参数
| MODEL | ROLS-P/ROLS-W |
|---|---|
| Specifications* | CE marked |
| Speed Range | 1-250,000 RPM |
| Illumination | Visible Red Laser, Class 2 (per IEC 60825-1:2014) |
| Classification | This product complies with IEC60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50 of June 2007 |
| Max Laser Output | 1 mW max |
| Pulse Duration | Continuous |
| Laser Wavelength | 650nm (visible red) |
| Beam Divergence | < 18 mrad |
| Beam Diameter | 4 x 7 mm typical at 2 m |
| Laser Diode Life | 8,000 operating hours MTBF (1-year warranty) |
| On-Target Indicator | Green LED on the wire end cap |
| Operating Range | Up to 25 ft. [7.6 m] and 60 degrees offset from the target |
| Power Requirement |
ROLS: 3.3 – 15 V dc, 0.4W max
ROLS24-W: 24 V dc ±10%, 0.4W max NOTE: 24 V dc power input option available see ordering information. |
| Output |
ROLS: Open collector with an internal pull-up resistor to supply voltage; positive pulse when target present; Output Voltage = Supply Voltage
ROLS24-W: Open collector with an internal pull-up resistor (5600 ohms) to supply voltage minus ~5V; positive pulse when a target is present Optional Outputs Available – Open Collector or TTL pulse (3.3 V dc), Negative pulse (contact factory) |
| Operating Temp | 14 °F to 158 °F (-10 °C to 70 °C) |
| Humidity |
Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity 104 °F (40 °C) |
| Connection |
3.5 mm [1/8 inch] male stereo plug (ROLS-P); Tinned wires (ROLS-W) |
| Material | 303 stainless steel supplied with two M18 jam nuts and mounting bracket |
| Lens | Acrylic plastic |
| Dimensions | Threaded tube 3.12 in. x 0.71 in. diameter [18 x 79.4 mm] long |
