带RS485通讯接口的面板式转速表

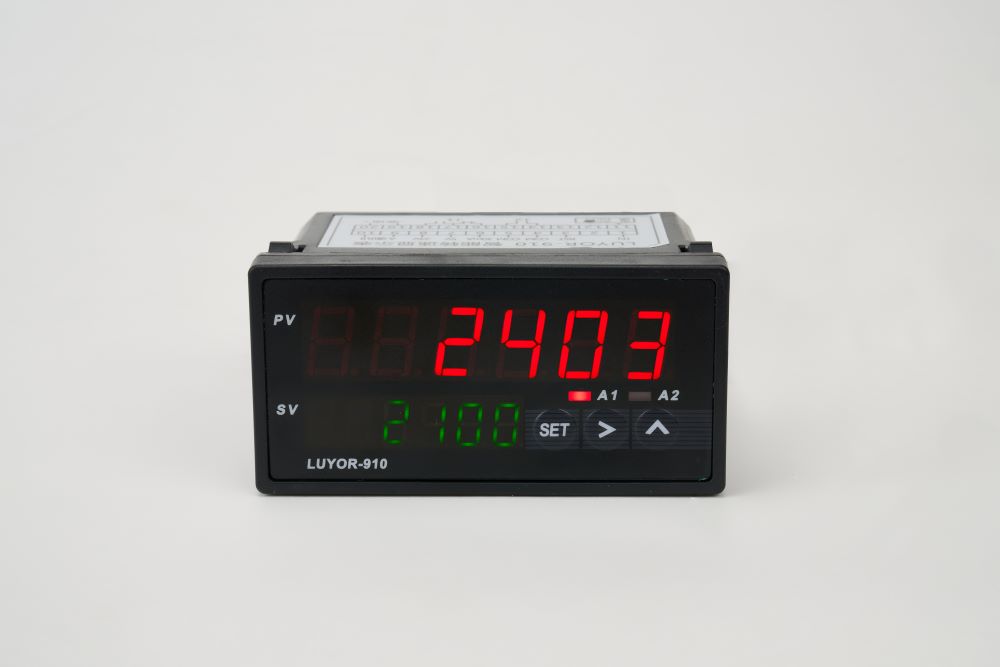

带RS485通讯接口的面板式转速表LUYOR-910

面板式转速表LUYOR-910可选择模拟信号输出或0-5v电压信号输出以及RS485通讯。面板式转速显示表LUYOR-910输入电压可选择100-260v交流输入或24v直流电源电压。

具有可选输出的luyor-910面板式转速表是一种多方面的仪器，与兼容的过程速度传感器相结合，非常适合用于速度、速率或时间监测应用。

luyor-910允许安装在紧凑的面板或小型外壳中。其标准输入范围增加了多功能性，包括NPN、接触和由脉冲发生器、接近传感器、光电传感器、磁传感器、旋转编码器和NPN-OC晶体管等设备产生的方波或正弦波信号。luyor-910是完全可扩展的，具有四种可选模式，使其能够测量各种过程速度、速率和时间：转速表、流量计、过程时间跨度和经过时间模式，该模式显示输入信号的倒数，在烘箱输送机应用中很常见。增加的示教功能可自动缩放控制，通过正确协调显示器与传感器信号的输入来简化设置。模拟、接触或SSR输出可用于额外的自动化控制。

luyor-910面板流量计的这些增强功能使其成为速度、加工速率或时间应用选择，如加工操作时间、输送机速度、电机输出、体积流量、烘箱固化经过时间等。

The luyor-910 Panel Meter Tachometer with optional outputs is a multi-faceted instrument ideally designed for speed, rate or time monitoring applications when combined with a compatible process speed sensor.

the luyor-910 allows mounting in tight panels or small enclosures. Added versatility is offered with its range of standard inputs which include NPN, contact and square or sine wave signals produced from devices such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors, rotary encoders and NPN OC transistors. The luyor-910 is fully scalable and possesses four selectable modes allowing it to measure various process speeds, rates and times: tachometer, flowmeter, process time span and elapsed time mode which displays the inverse to the input signal, common in oven conveyor applications. An added teaching function auto-scales the control which simplifies the set-up by properly coordinating the display with the input of the sensor’s signal. Analog, contact, or SSR outputs are available for additional automation control.

These enhanced features of the luyor-910 Panel Meter makes them the perfect choice for speed, process rate or time applications such as machining operation timing, conveyor speed, motor output, volumetric flowrate, elapsed time of oven curing etc.
