BHK 68-0020-04 汞灯24v驱动电源

美国BHK 68-0020-14汞灯电源：

输入24Vdc，输出1100v，电流：47.5mA,频率27k。

FEATURES

Instant Full Light Output for Analamp Mercury Lamps

Ultra Stable-Typical Light Ouput Stability\nof 0.1%

Continuous Lamp Monitoring via E/O Feedback

Increased Lamp Life

Internal E/O Feedback Control

Solid State Power Supply

High Frequency Lamp Driver

Phosphored Lamps Available

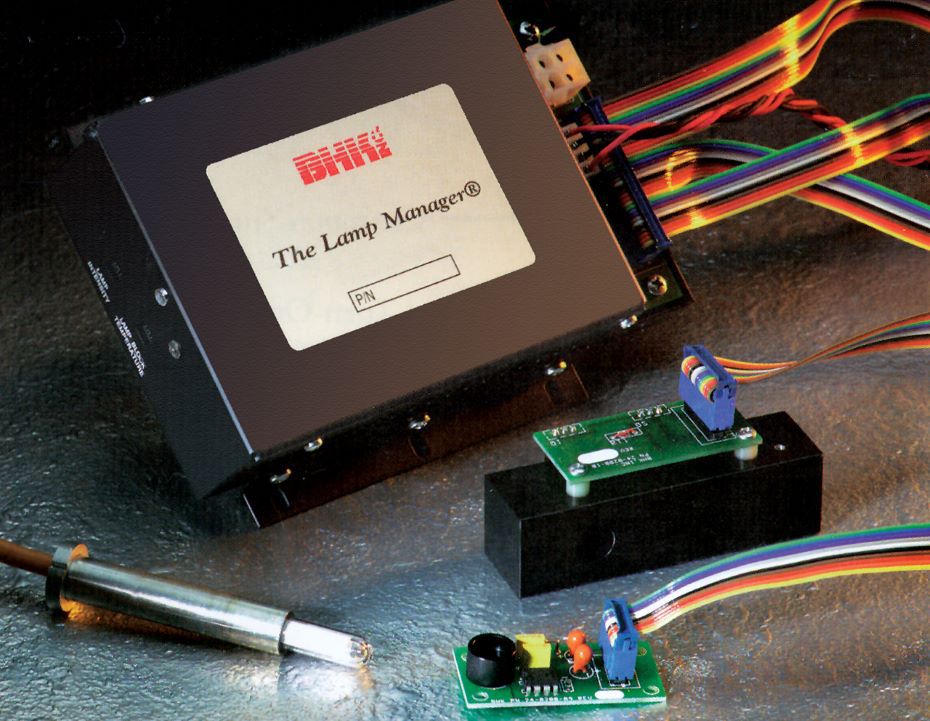

Designed as a three part modular system, The Lamp Manager allows for maximum performance and flexibility. The basic system allows for 1″ lighted lengths and components consist of:

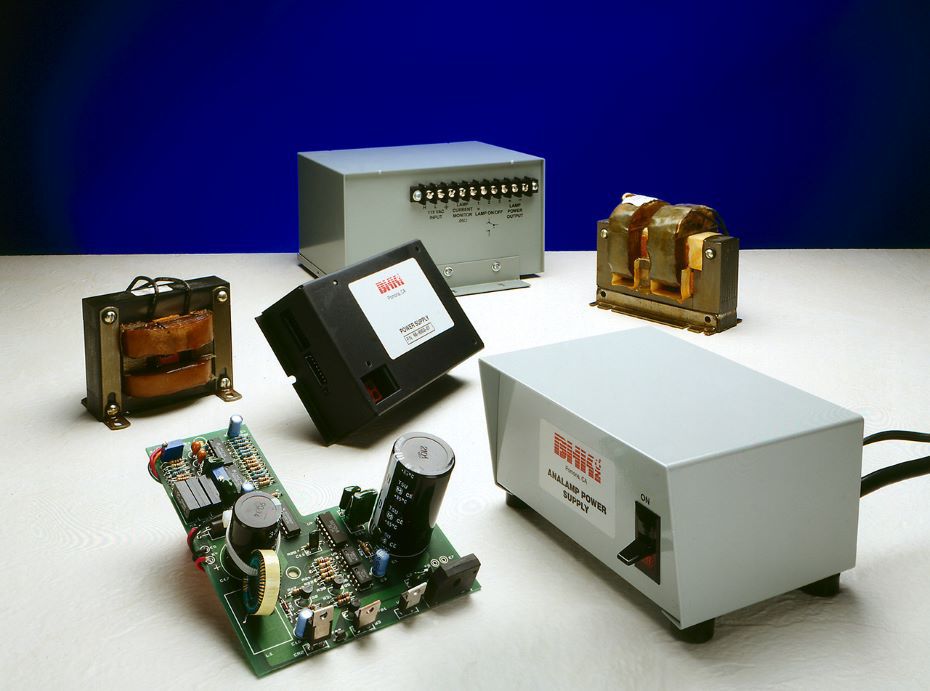

High Performance Power Supply (HPPS) – ensures optimum lamp operating characteristics and maximum performace via high frequency driver. Simple user adjustable intensity allows for superior control over any other power supply system.

Temperature Controlled Lamp Housing Assembly (LHA) – provides an ultra-stable operating environment within which the lamp is mounted. Custom configurations are available.

Electro Optical Feedback Control Module (EOM) – allows the system to maintain constant light output over the life of the lamp via continuous data feedback to the High Performance Power Supply.

Custom systems are available for longer lighted lengths. Contact BHK for details.
