CL-508 UV Crosslinkers

CL-508 UV Crosslinkers

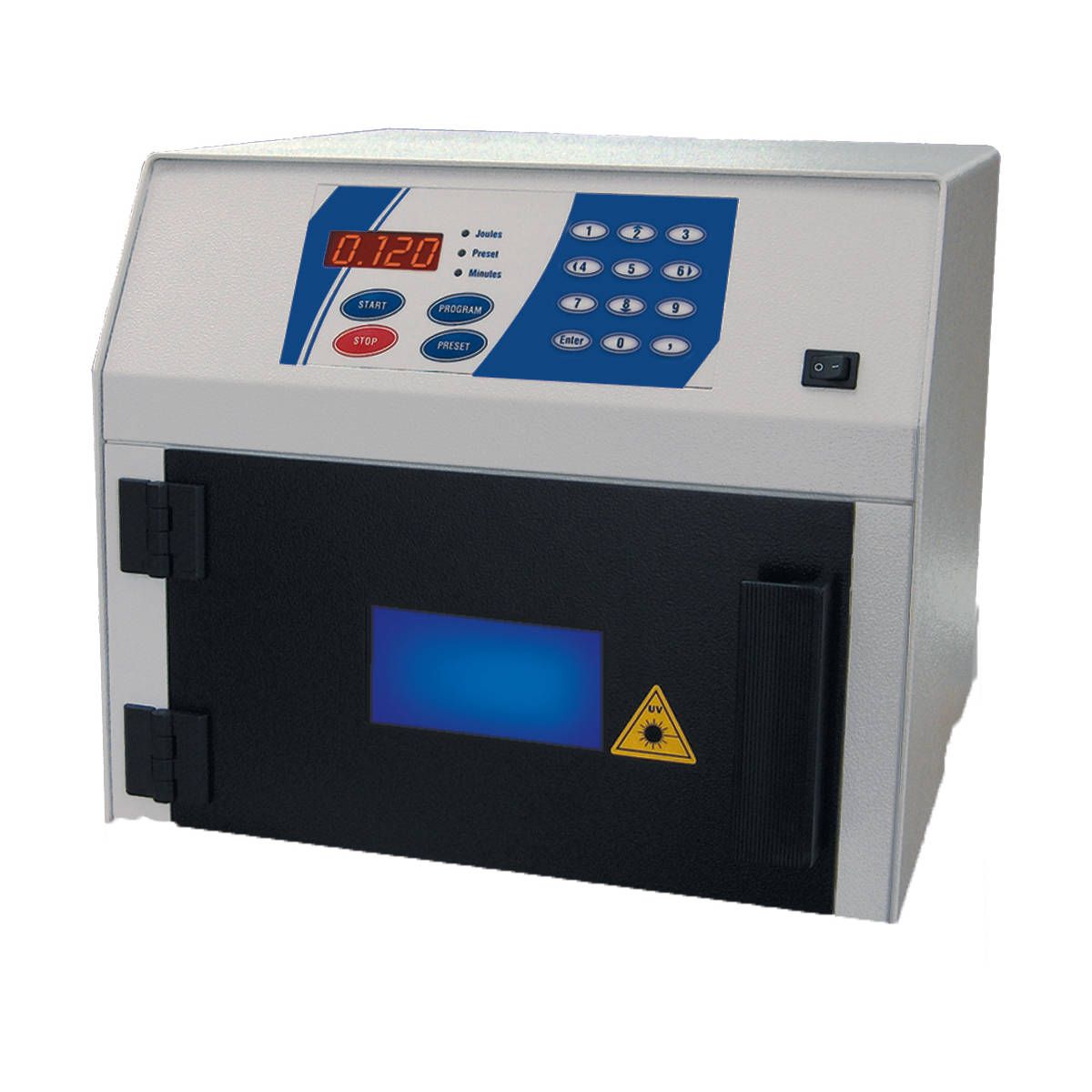

The CROSSLINKER (CL-508G) is a complete, microprocessor controlled UV irradiation system, mainly dedicated to the linking of nucleic acid to membranes and elimination of PCR contamination. Its innovative design ensures unique features:

Microprocessor controlled. The programmable microprocessor constantly monitor the UV light emission. The irradiation stops automatically when the energy received matches the programmed energy.

Reproducibility. Thanks to its UV sensors, irradiation cycles are perfectly reproducible, regardless of intensity fluctuation of the UV source. Just programme your energy and CROSSLINKER® delivers it

CROSSLINKER combines the latest technology with a very high quality of components : UV exposure chamber in stainless steel, protective quartz disk on the UV sensor cell, highly resistant tactile membrane keypad..

Ease of use. The readout display and the large number of pre-sets, in either energy unit (Joules/cm²) or time unit (seconds) makes the CROSSLINKER a very simple instrument to use while very powerful

Consistent measure. The UV light intensity is captured in a well of light, positioned above the irradiation chamber. The UV cell measure is then collected from all the UV tubes and not just one. This also protect the UV cell from any dirt which can enter the chamber.

This unit has a 12 month limited warranty, for more information, consult our terms and conditions.

Product Includes: UV Crosslinker

Parameter:Value

External Dimensions: (H x D x W)30.5 x 36 x 35 cm

Internal Chamber Dimensions: (H x D x W)14.5 x 33 x 26 cm

Weight:10 Kg

UV Wavelength:254nm (G), 312nm (M) or 365nm (BL_

UV Source:5 x 8W tube

Programming options:9 pre-set UV Energy exposures, 9 pre-set UV exposure Time, manual setting of UV Energy exposure, Min.0.025 Joules / Max. 99.99 Joules, manual setting of UV exposure Time, Min.10 Seconds / Max.599 Minutes

Energy Display:2 options, 0.000 to 9.999 Joules or 0.00 to 99.99 Joules

Time Display:2 options, 00.00 to 99.59 minutes or 000.0 to 599.5 minutes

UV Crosslinker, 365nm SKU: CL-508.BL

UV Crosslinker, 254nm SKU: CL-508.G

UV Crosslinker, 302nm SKU: CL-508.M

DNA 紫外交联仪CL-508G

用于交联核酸或消除PCR污染

微处理器控制器可进行可编程设置

9个紫外线和时间曝光的预设程序

0.120J/cm2的核酸固定化预设程序

宽敞的不锈钢曝光室

紫外交联仪CROSSLINKER（CL-508）是一个完整的、由微处理器控制的紫外线照射系统，主要用于核酸与膜的连接和消除PCR的污染。它的创新设计确保了独特的功能。

微处理器控制。可编程的微处理器不断监测紫外光的发射。当收到的能量与编程的能量一致时，辐照会自动停止。

可重复性。由于它的紫外线传感器，无论紫外线源的强度如何波动，辐照周期都是完全可重复的。只需对能量进行编程，CROSSLINKER®就能提供能量。

CROSSLINKER结合了新的技术和非常高质量的部件。不锈钢的紫外线照射室，紫外线传感器单元上的保护性石英盘，高度耐磨的触觉薄膜键盘。

易于使用。读数显示和大量的预设，无论是能量单位（焦耳/平方厘米）还是时间单位（秒），都使CROSSLINKER成为一个使用非常简单的仪器，同时功能非常强大。

一致的测量。紫外光强度是在一个光井中采集的，位于辐照室的上方。紫外电池的测量是由的紫外管收集的，而不仅仅是一个。这也是为了保护紫外线电池不受任何可能进入室内的灰尘的影响。
