美国蒙那多SPSR-115/230自供电传感器6150-020​

美国蒙那多 SPSR-115/230自供电传感器6150-020

选择型号：SPSR-115/230
自供电传感器6150-020 SPSR-115/230 包括：  SPSR-IM、SPSR-U 通用电源/充电器、ROS-P 远程光学传感器和 12 英寸反光带。
传感器电源模块6150-021 SPSR-IM 包括： 带有 SPSR-U 115/230 Vac 电源/充电器的接口模块。传感器必须单独订购.

SPSR Self-Powered Sensors PN: 6150-020

Select Model
SPSR-115/230

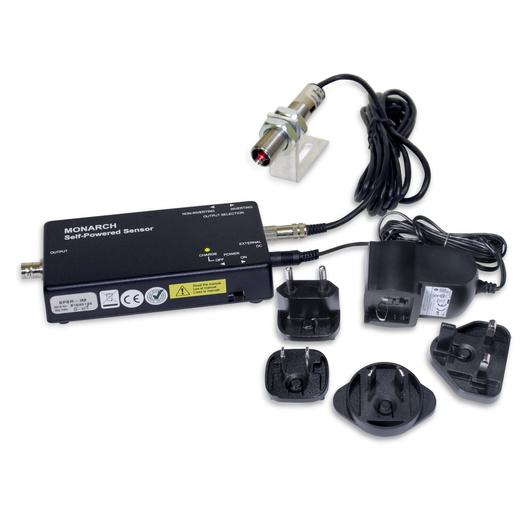

P/N: 6150-020  SPSR-115/230 Includes: SPSR-IM, SPSR-U Universal Power Supply/Recharger, ROS-P Remote Optical Sensor, and 12 inches of Reflective Tape.
P/N: 6150-021  SPSR-IM Includes: Interface Module with SPSR-U 115/230 Vac power supply/re-charger. SENSOR MUST BE ORDERED SEPARATELY (See Below)

特点：
SPSR 供电模块支持以下四种转速传感器 ROLS-P、ROS-P//IRS-P 和 MT-190P。BNC 接口输出 0-5V 或 5-0VTTL 信号。内置充电电池可支持传感器使用 40 小时，SPSR 供电模块可外接 115Vac、230Vac 和 9-15Vdc 电源连续使用。SPSR 供电模块加传感器通过测量转速将产生的 TTL 信号（每转一个脉冲信号）提供给振动分析仪、频谱分析仪、频闪仪、数据采集卡、转速表、波形分析仪等设备。

DESCRIPTION
The unique SPSR (Self Powered Sensor) with internal rechargeable batteries provides the required power to any one of (4) Monarch Sensors (see below). The TTL compatible output is switch selectable as either positive going 0-5V pulses or negative-going 5-0V pulses provided on a BNC connector. The internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, the SPSR can be powered by 115/230Vac. Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers, and magnetic tape recorders.

为方便起见，SPSR 115/230 包含我们zui受欢迎的传感器 ROS-P。SPSR-IM仅为接口模块，可与以下任何 (4) 个传感器（单独订购）配对，以zui适合您的特定应用：
可见光红色 LED 光源（型号：ROS-P | PN 6180-057）
可见光红色激光光源（型号：ROLS-P | PN 6180-029）
红外光源（型号：IRS-P | PN 6180-020）
放大磁传感器（型号：MT-190P | PN 6180-036）

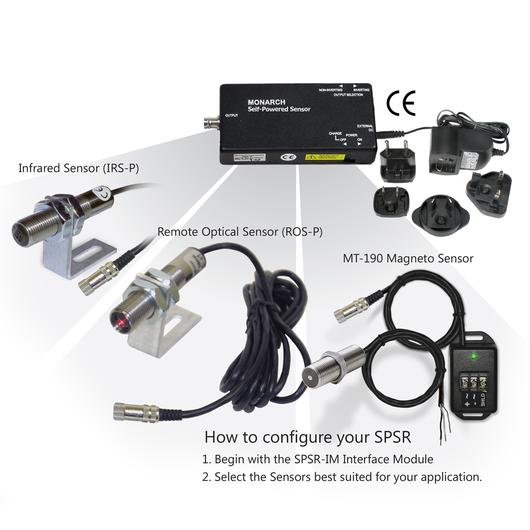

For convenience, the SPSR 115/230 includes our most popular sensor, the ROS-P. The SPSR-IM is the interface module only and can be paired with any of the following (4) sensors (ordered separately) to best suit your particular application:
A visible optical red LED light source (Model: ROS-P | PN 6180-057)
A visible optical red Laser light source (Model: ROLS-P | PN 6180-029)
An infrared light source (Model: IRS-P | PN 6180-020)
An amplified magnetic sensor (Model: MT-190P | PN 6180-036)

技术规格
范围：  (RPM) - 与传感器相同
输出信号：  TTL兼容脉冲，0-5V或5-0V
脉冲宽度： 由目标大小和转速决定
输出连接器：  BNC 连接器
电源：  四 (4) 节内部可充电 AA 镍氢电池或 115/230Vac

SPECIFICATIONS*
Range: (RPM) - Same as the sensor
Output Signal: TTL compatible pulse, 0-5V or 5-0V
Pulse Width: Determined by the size of the target and rotational speed
Output Connector: BNC Connector
Power:  Four (4) internal rechargeable AA Ni-MH batteries or 115/230Vac

SPSR 自供电传感器的运输代码：
统一关税代码：   9029205000
原产国：  美国
出口管制分类号 (ECCN)：   EAR99

SHIPPING CODES FOR SPSR SELF-POWERED SENSORS:
Harmonized Tariff Code:  9029205000
Country of Origin:  US
Export Control Classification Number (ECCN):  EAR99
