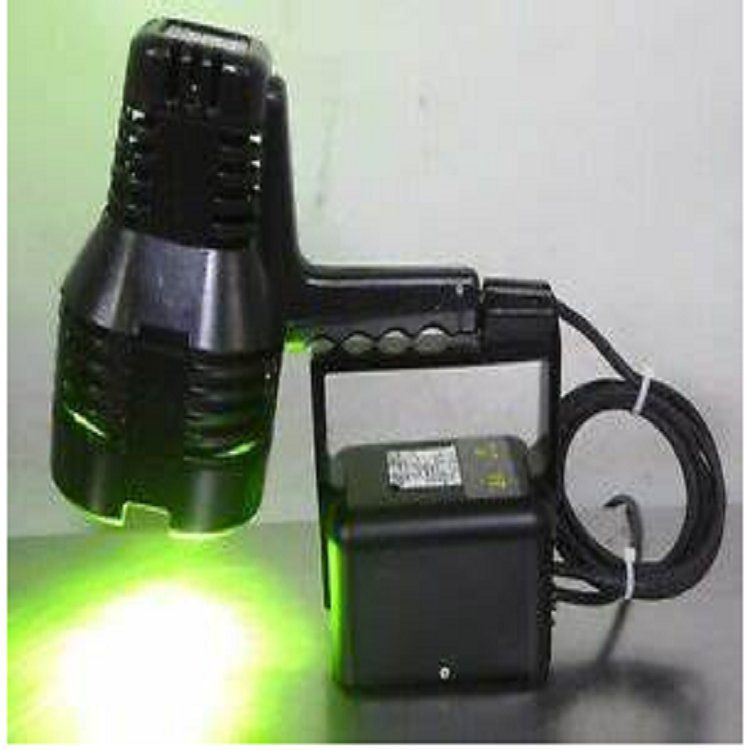

美国UVP B-100YP高强度表面检查灯

美国UVP B-100YP高强度表面检查灯内置的是100w高压汞灯灯泡，并采用黄色滤光片将500nm一下的波段过滤掉，只允许绿光和黄光通过，肉眼看上去是黄绿色光线。B-100Y美国UVP表面晶粒检查灯可快速检查加工表面的瑕疵，灰尘，异物等。B-100Y表面晶粒检查灯应用：LCD滤光片、偏光板、晶圆、半导体、玻璃或金属表面刮痕及灰尘检查。

B-100Y美国UVP黄绿光表面晶粒检查灯主要特点

• 检查精密加工表面的瑕疵、污点、异物等

• 快速无损检测小至10微米的瑕疵、小颗粒

• 有效地探测出生产过程是早期的污物，节省生产时间及不必要的成本

• 100瓦高强度汞灯发出543,574及576nm波长光谱

• 黄色滤色片滤掉波长小于500nm的光线，防止产生荧光干扰

• 高对比度的光线能清晰检测到精细的表面粒子

• B-100Y是铝合金外壳; B-100YP带塑料外壳

• 灯头易于操作

B-100Y和B-100YP区别

黄色滤光片能滤掉波长小于500nm的光线，产生543nm、574和576nm的光线。高对比度的光线可检测表面小于10微米的颗粒。

B-100Y表面检查灯为铝合金外壳，工作中会造成高温，没有保护措施。

B-100YP表面检查灯带塑料外壳，工作中产生的高温，可以有效的阻隔人员接触，避免不必要的烫伤。

B-100Y美国UVP黄绿光表面晶粒检查灯规格

UV光源：365nm长波紫外线

功率：100W

滤色片：黄光

尺寸：

B-100Y：216X140mm

重量：5.33kg

电源线：2.44米

B-100YP：248X152mm

重量：5.67kg

电源线：2.44米

美国UVP大面积高强度紫外线灯的型号和应用选择：

UVP High Intensity UV Lamps

B-100 "P" series lamps come with heat-resistant plastic (Cool-Touch) housing allowing users to handle the lamp head regardless of how long the lamp has been operating

Non "P" models are built with an aluminum lamp head

A 100 watt spot bulb is standard with all models (except the B-100SP); the bulb is rated at 5000 hours

Self-ballasted bulb included with the B-100SP has an average life of 450 to 2000 hours depending on use patterns

The lamp head connects to the transformer base for hands free use (all models except B-100SP) allowing the lamp head to rotate a full 360°; remove the lamp from the base for additional mobility

Product Details

The UVP Blak-Ray B-100 Series high powered UV lamps offer brilliant irradiance for optimum fluorescence. The B-100AP lamp is placed in the transformer base for hands-free operation.

B-100AP and B-100AP/R

B-100AP models feature 100 watt longwave UV, Cool-Touch housing and ballast base. At 18 in. (457 mm), the lamp produces a highly intense center of UV irradiance about 5 in. (127 mm) in diameter. Lamp head can rotate 360 degrees when attached to the base for hands-free operation or lamp can be removed from the base. 8 ft primary and secondary cords. For added mobility, select the B-100AP/R which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100A and A-100AR

The longwave B-100A is manufactured with a scratch-resistant aluminum housing which connects to ballast base with an 8 foot cord; 8 foot secondary cord is included. The 100 watt longwave UV bulb is excellent for inspection applications. For increased mobility, select the B-100AR which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100SP

This 90 watt longwave, self-ballasted lamp is a highly portable, high intensity lamp for automotive leak detection applications. The ballast is built directly into the bulb. The B-100SP features the Cool-Touch housing and an 8 ft. (2.44m) cord.

B-100Y and B-100YP

These models feature a yellow filter which blocks wavelengths shorter than 500 nm and produces three strong mercury lines at 543, 574 and 576 nm. The high contrast light is produced for fine surface particle detection. Particles down to 10 microns are routinely visible with this lamp. The B-100Y is built with aluminum housing and the B-100YP with a plastic housing. These lamps are excellent for semiconductor wafer inspection as most photoresist absorption occurs below 450 nm.

Applications include:

Fluorescence Inspections

Non Destructive Testing

Leak Detection
